Ultrasonic Cement Analyzer, Single Cell, 20 KSI
http://schema.org/OutOfStock

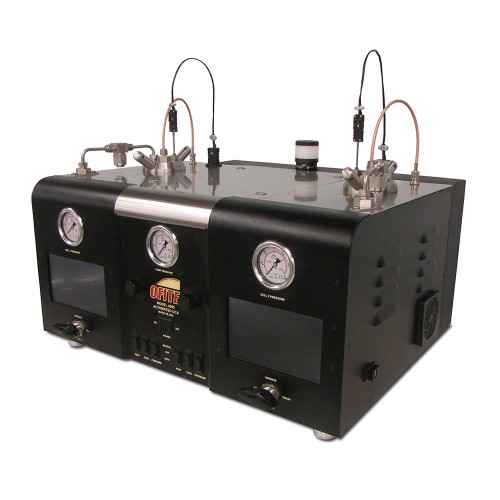

Model 4005 Automated Twin Cell UCA

Brand: OFI Testing Equipment, Inc.
Product Code: 120-56
Availability: Call for availability
Attachments:
- attachment_672393e0cae3d_120-56_instructions.pdf
- 120-56_brochure.pdf

Download PDF

By measuring the change in velocity of an acoustic signal, the Ultrasonic Cement Analyzer (UCA) provides a continuous, non-destructive method of determining compressive strength of a well cement as a function of time while at temperature and pressure. The Model 4005 Automated Twin Cell UCA automatically controls the temperature and pressure during the test and features a touch-screen display as well as PC software.

An optional Static Gel Strength Measurement device can be added to measure the static gel strength of the cement sample over time.

Features

  • Automatic temperature (up to 400°F) and pressure control (up to 5,000 PSI) simulate down-hole conditions
  • Non-destructive testing
  • Operates as standalone or with a computer
  • Interactive display for each cell provides full test control
  • Independent temperature and pressure control for each cell
  • Indicator light makes machine status easy to see
  • Pressure control to within ± 10 psi
  • Test data saved on the instrument and exported via USB
  • Total test recovery after a power failure
  • Connectivity options: Serial, Ethernet, USB
  • Calibration data is stored on the machine
  • Meets criteria in API Spec 10A, RP 10B-2, and RP 10B-6

Specifications

  • Maximum Temperature: 400°F (204.4°C)
  • Maximum Pressure: 5,000 PSI (34.47 MPa)
  • Size: 25” × 21” × 13” (64 × 53 × 33 cm)
  • Weight: Approx. 100 lb (45 kg)

Requirements

    • Air Supply: 100 PSI (690 kPa) Recommended, 150 PSI (1,035 kPa) Maximum, ¼” NPT Connector
    • Water Supply: 40 - 100 PSI, 40° - 100°F, ¼” NPT Connector
    • Coolant Supply: ¼” NPT Connector
    • Power Supply:
      • Electronics: 230 - 240 Volt, 50 - 60 Hz, 2 Amp
      • Heaters: 230 - 240 Volt, 50 - 60 Hz, 8 Amp

Computer

  • Windows XP or higher
  • RS-232 Serial Port (or Serial to USB Adapter)
  • Minimum Screen Resolution: 1280 × 680

Software Features

  • Reports real-time data that can be exported as a spreadsheet
  • Enables you to program multiple temperature and pressure ramps
  • Operates multiple units with one computer

Part Number

  • 120-56 - Model 4005 Automated UCA, with Two UCA Cells
  • 120-56-C - Model 4005 Automated UCA/SGSM, with Two UCA Cells and One SGSM Cell

Patent No. 9,612,232
