Product Code: 127-80
Availability: 1

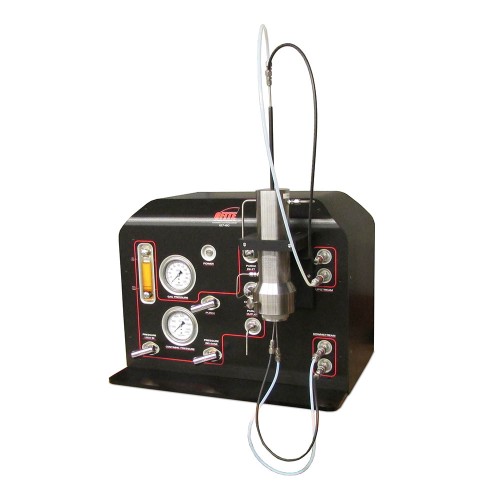

The Automated Gas Permeameter is designed to measure the permeability of core specimens 1.5" in diameter and up to 4" in length. The core specimen is placed into a quick access core holder with a stationary core boot. Confining pressure constrains the core inside the boot while gas flows through it. Dual auto-switching mass flowmeters measure the flowrate of the gas through the core. The software controls the confining pressure and inlet pressure on the core while calculating the permeability.

Features

  • Measures permeability of a core sample
  • Quick access core holder with stationary boot makes loading and unloading the core sample quick and easy
  • Dual auto-switching mass flowmeters provide greater accuracy over the measurement range
  • Software controls confining pressure and gas inlet pressure while calculating and recording permeability over time

Software Features

  • Controls confining pressure and gas inlet pressure
  • Records confining pressure, mean pressure, inlet pressure, and outlet pressure
  • Customer test builder provides detailed control over test parameters

Specifications

  • Confining Pressure: 10,000 psi (69 MPa)
  • Gas Inlet Pressure: up to 115 psi (793 kPa)
  • Flowrate Range: 0 - 500 sccm (dual scale)
  • Temperature: Ambient
  • Core Diameter: 1.5" (4 cm) - other sizes available
  • Core Length: up to 4"
  • Size: 27" × 21" × 21" (69 × 53 × 53 cm)
  • Weight: approximately 180 lb (81.6 kg)

Requirements

  • Gas: Helium or Nitrogen - up to 115 psi (793 kPa)
  • Air: up to 140 psi (965 kPa)
  • Electrical: 115/230 VAC, 50/60 Hz

Part Number

  • #127-80
