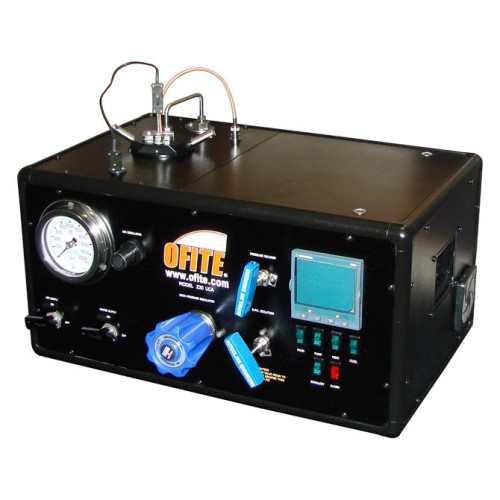

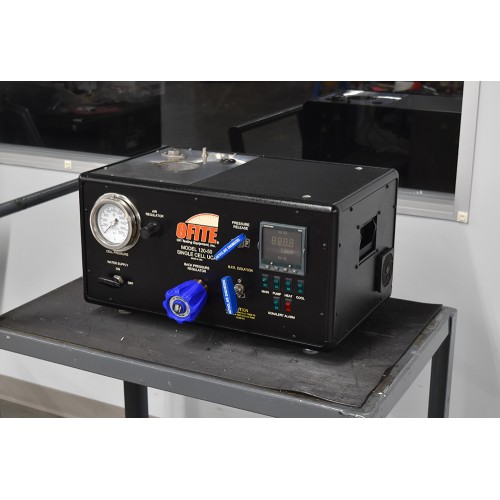

Ultrasonic Cement Analyzer, Single Cell, 20 KSI, Reconditioned

By measuring the change in velocity of an acoustic signal, the Ultrasonic Cement Analyzer provides a continuous non-destructive method of determining compressive strength as a function of time while at temperature and pressure.

Features

• Cement samples are not destroyed at time intervals
• Self-venting regulators provide extensive pressure control
• Temperature control (up to 400°F) and pressure control (up to 20,000 PSI) are available to simulate down-hole conditions
• Unique technology results in a cleaner signal, so transit times and data are more accurate
• Data is available instantly on-screen and is automatically downloaded to a Microsoft Excel spreadsheet for easy analysis

Specifications

• Maximum Temperature: 400°F (204.4°C)
• Maximum Pressure: 20,000 PSI (137.9 MPa)
• Size: 15” × 24” × 18” (38 × 61 × 45.8 cm)
• Weight: Approx. 85 lb (39 kg)

Requirements

• Air Supply: 100 PSI (690 kPa) Recommended, 150 PSI (1,035 kPa)
• Maximum, ¼” NPT Connector
• Water Supply: 40 - 100 PSI, 40° - 100°F, ¼” NPT Connector
• Coolant Supply: ¼” NPT Connector
• Power Supply: 230 - 240 Volt, 50 - 60 Hz, 10 Amps
• Fuse: T 10A L 250V
• Windows XP or higher
• RS-232 Serial Port (or Serial to USB Adapter)
• Minimum Screen Resolution: 1280 × 680

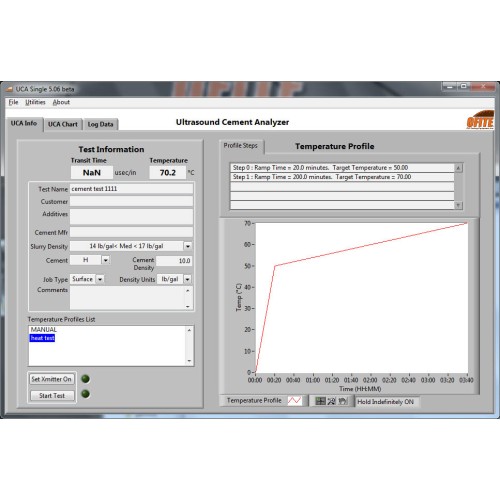

Software Features

• Reports real-time data that can be exported to an Excel, Word, or similar file
• Enables you to program multiple temperature ramps
• Operates multiple units with one computer

Optional Accessories

• 120-58 - High Pressure SGSM, mechanically measures gel strength

Part Number

• #120-50-99
